Pcb Assembly Machine Smt Handling Equipment Wave Solder Pcb Unloader
Apply

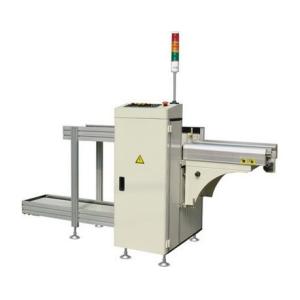

The Multi Magazine Unloader is designed for unloading of PCBs, an arriving PCB is taken up by the attached conveyor and then pushed into the magazine by a specially designed pusher. The magazine indexes to the next position and is ready for the following unloading cycle.
Features
1. PLC Control system.
2. FUJI button, easily operation.
3. Four pitches selection ( 10, 20, 30, 40mm).
4. Direction from left to right or right to left (optional).
5. SMEMA compliant.
6. CE certified.
Specifications
|
Model |
U-170C Unloader |
U-180C Unloader |
U-200C Unloader |
U-210C Unloader |
|||||
|
Power |
AC 110/220V +/-10V, 50/60HZ |
||||||||
|
Air Pressure |
5kgf/cm2 |
||||||||
|
PCB Size |
350 x (50 - 250)mm |
460 x (50 - 330)mm |
535 x (50 - 390)mm |
535 x (50 - 460)mm |
|||||
|
Transport Height |
900±20mm |
||||||||
|
PCB Direction |
left to right or right to left(option) |
||||||||
|
Magazine Rack Size |
350 x 320 x 563mm |
460 x 400 x 563mm |
535 x 460 x 570mm |
535 x 530 x 570mm |
|||||
|
Pitches |
10,20,30,40mm |
||||||||
|
Machine Dimension |
1700 x 760 x 1150mm |
1800 x 820 x 1150mm |
2000 x 880 x 1150mm |
2100 x 960 x 1150 |
|||||
